Are you baffled by what a septic tank baffle is? Ever wondered what they actually do? Ok, it might not be one of life's greatest puzzles, but if your property has a septic tank, then it's worth knowing what's what.

First of all, it's useful to know how a septic tank works. All of the wastewater from your property's toilets, showers, sinks and washing machine flows through a pipe and into your property's septic tank. The waste then separates into three different layers (bear with me, this is where it gets a bit unpleasant!):

  1. The top layer is made up of less dense matter - fats, oils and solids that have not yet broken down, also known as the crust (I did warn you!)
  2. The second layer is mostly dirty water without any solids remaining, and it is this layer only that should pass out of the tank and into the soakaway system
  3. The bottom layer is known as sludge (I can only apologise) and consists largely of more dense waste that builds up slowly over time. This and the top layer are what must be removed during a routine septic tank emptying.

I mentioned that only the second layer should pass into the soakaway system. This is because soakaway systems are usually made up of slotted or perforated pipe work, through which the separated waste water percolates into the subsoils surrounding it. This provides a certain amount of treatment of the waste water, and it is able to pass into the ground without causing any pollution.

If the lumpier stuff escapes from the tank and into the soakaway system, it blocks it all up and prevents the soakaway from functioning as it should. This is one of the most common soakaway problems in fact, and what makes it worse is that once it's happened it's impossible to undo.

So, in our quest to avoid septic tank problems, this is where our friend the baffle comes in. The baffle sits inside the top of the tank, and all the waste water enters the tank underneath it. The baffle then acts almost like an upside down sieve, keeping all the solids and fats in the tank, and ensuring that only water can escape into the soakaway system.

Below are a couple of lovely septic tank diagrams to show you the two most common types of septic tank baffles. The first diagram shows what's called a 'welded baffle cone'. It's effectively wedged between the two half spheres of the septic tank when its manufactured. As you can see it has a ball which sits in the neck of the baffle cone (yes, it does look like a witch's hat, but I think we should stick with baffle cone for now), and it's this which stops the solid waste from spilling out to where it could escape through the outlet pipe. Instead, the waste water rises up through the small slots you can see, and out through the outlet pipe.

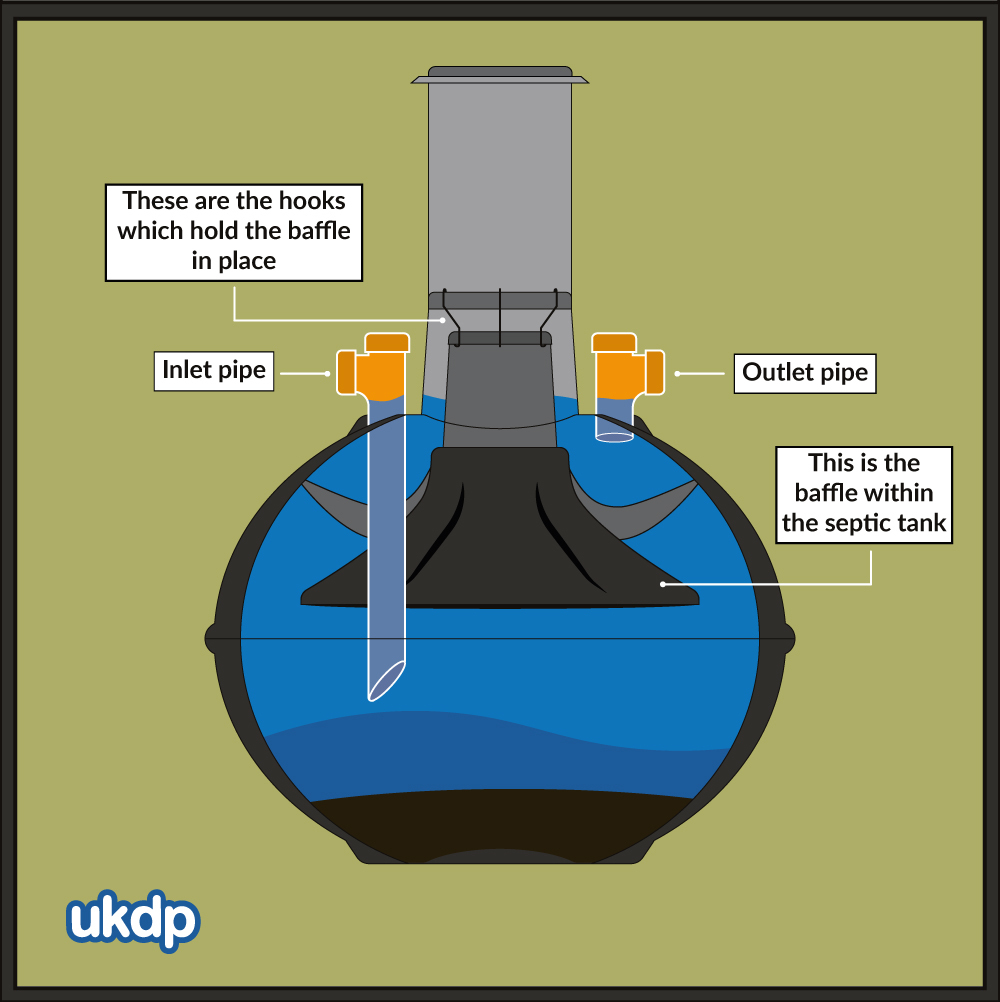

The second diagram shows what's called a hanging baffle. This is usually held in place to the neck of the tank by metal hooks. You might already know if you have this type of septic tank baffle if you've been brave enough to take a look into your septic tank, as the hooks are usually visible at the top of the tank.

Blog welded baffle illustration 2
Blog hanging baffle illustration 1

So far so good, we now know roughly what a septic tank baffle looks like and have a vague idea of what they do.

The problems happen when the baffle becomes damaged. This can happen in a few different ways - external pressure on the tank can cause it to bend out of shape, and baffles are also susceptible to being damaged when septic tanks are being emptied.

Blog septic tank collapsed baffle
Collapsed baffle

Here's an example of what a collapsed baffle looks like - this poor baffle looks like its having a very bad day!

Can a damaged septic tank baffle be repaired?

Septic tank repairs can often be challenging, and baffles are no exception as they are often an integral part of the tank itself. Unfortunately, often the septic tank needs to be replaced once the baffle has become damaged. The problem also is with the damage to the soakaway - and soakaway repairs are often very difficult. This is because when the wrong stuff gets into the soakaway because the baffle isn't doing its job anymore, it blocks up all the holes and perforations whilst polluting the sub-soils.

So none of this is great news I'm afraid if you're having problems with your septic tank's baffle. But it's not all doom and gloom, because if your septic tank's baffle has become damaged, the costs to repair or replace the damaged system might be covered by your existing buildings insurance.

Here at UKDP we have a specialist team who can manage everything on your behalf - from investigating the problem, through to managing your insurance claim (we are authorised by the Financial Conduct Authority to do so) and undertaking any works agreed with your insurer. Call us today on 0800 028 9903 to find out more about how we can help.
